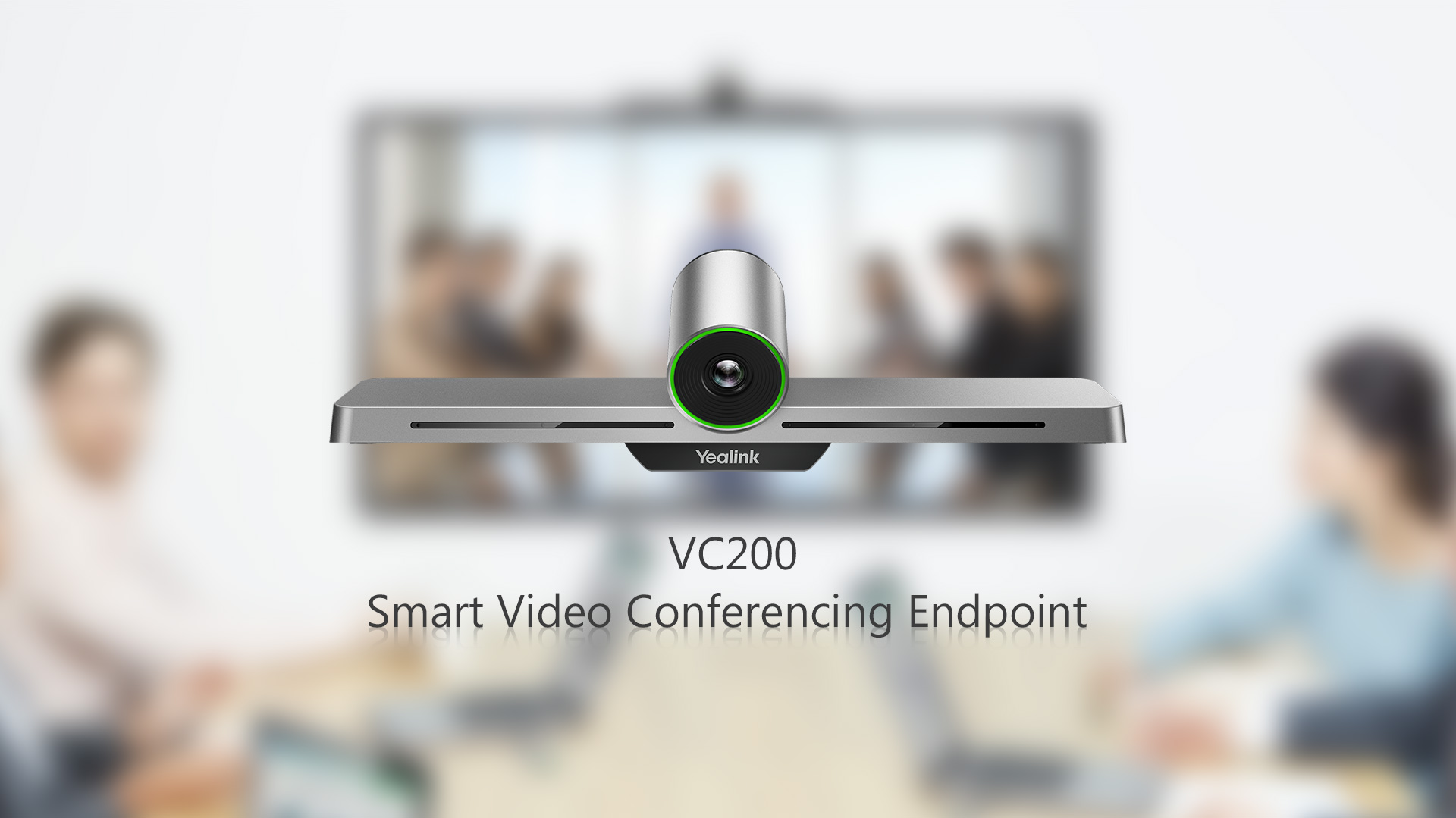

All-in-one design, easy to mount on the TV
Android 7.1 OS 4K resolution ratio, 4x e-PTZ camera, and 103° wide-angle lens Built-in 6 beamforming microphone arrays with directed voice pickup Built-in Bluetooth Built-in dual-band Wi-Fi (2.4GHz/5GHz) Supports wireless content sharing H.265/HEVC video codec, resists up to 30% packet loss
Package includes
• VC200 Codec
(integrate codec/camera/microphone/bracket)
• VCR11 Remote Control
• PoE Adapter
• WPP20 Wireless Presentation Pod (optional)
• VCH50 Video Conferencing Hub (optional)
Ultra HD 4K Camera
• Ultra HD 4K camera
• 1920 x 1080 video resolution
• 30 frame rate
• 4x e-PTZ camera
• Horizontal field of view: 103°
• Beauty shot
Microphone
• Built-in six beamforming microphone arrays
• 16ft / 5 meters voice pickup distance
• Wireless microphone (optional)
• Conference phone CP960 (optional)
Video Standard and Network Suitability
• Video codecs:
H.265/HEVC, H.264 High Profile, H.264, H.263
• Forward Error Correction (FEC)
• Anti 30% video packet loss
• Bandwidth dynamic adaptive adjustment
• Shared content and audio preference strategy
• Bandwidth/protocol/audio&video call auto adaptive
Audio Features
• Audio codecs:
– Opus, 8~48kHz sampling rate
– 14kHz bandwidth with G.722.1C
– 7kHz bandwidth with G.722.1
– 3.4kHz bandwidth with G.711 (PCMA/PCMU)
• Audio technology:
– Acoustic echo cancellation
– Automatic gain control
– Yealink Noise Proof Technology
– CNG, PLC, AJB, De-Rerb
Operating System
• Based on Android 7.1
Call Features
• 1080P30 people + 1080P30 content sharing
video quality
• Video Layout: Picture-in-picture (PIP)
• Video/audio recording and playback
• Screenshots in USB flash drive or local storage
• Group dial
• YMS meeting control:
– invite/remove
– mute/unmute participates
– lock
• DND (do not disturb), call statistics
• Auto answer, mute, call waiting
• Virtual keyboard
• Local directory: 500 entries
• Call history: all/missed/received/dialed
• LDAP phonebook
• Multi-language support
• Additional five-way audio call
Standard Communication Protocol
• H.323/SIP
• Dual stream protocol: H.239 (H.323)/BFCP (SIP)
• FECC: H.224/H.281, Sony VISCA and PELCO D/P
• H.323 protocol suite: H.245, H.225, H.235, H.241
• Gatekeeper account and SIP account
Network and Security Features
• Built-in dual-band Wi-Fi (2.4GHz/5GHz):
– connect to a Wi-Fi network
– serve as a Wi-Fi hotspot
• Built-in Bluetooth
• IPv4 and IPv6, DHCP/static IP
• HTTP/HTTPS web server
• RS232/HTTP API for control system integration
• SRTP/TLS, AES 128-bit encryption
• QoS: 802.1p/q, Diff-serv
• VLAN, IEEE802.1X, LLDP-MED
• Anti-attack
• Network diagnosis: Ping, trace route
• Time and date synchronization using SNTP
• Built-in certificate
NAT and Firewall Traversal
• ICE/TURN/STUN
• H.460
• NAT (manual/auto mode)
• Yealink intelligent firewall traversal
• Open VPN
Configuration Management
• Configuration via
browser/display/auto-provisioning
• Virtual remote control
• Firmware upgrading, factory resetting
• Export or import configuration
• System log exporting
VC200 Codec Connections
• 1 x HDMI output (CEC supported)
• 1 x Yealink extension port (RJ-45) connect to
VCH50/CP960 Phone
• 1 x 10/100M Ethernet port:
• Power over Ethernet (IEEE 802.3af)
• 2 x USB 2.0
• 1 x Line-out (3.5mm)
• 1 x security lock slot
• 1 x reset slot
Other Physical Features
• Capacity: 16GB (Available: 8GB)
• Yealink PoE Adapter: AC 100~240V input
• Power consumption (PSU):
Idle＜6.5W; Normal: 7W; MAX: 8W
• Dimension (W.D.H):
– VC200 codec: 300 mm x 70 mm x 86.6 mm
– VCR11: 190mm x 55mm x 24mm
• Operating humidity: 10~95%
• Operating temperature: 0~40°C
• Storage temperature: -30~70°C
Package Features
• Qty/CTN: 4 PCS
• N.W/CTN: kg
• G.W/CTN: kg
• Giftbox size: 355mm*135mm*140mm
• Carton Meas: 375mm*335mm*355mm
