Multipoint license for up to 8 parties

H.264 high profile, saving 50% bandwidth

Yealink intelligent firewall traversal

Bandwidth dynamic adaptive adjustment

Video recording and playback

Remote diagnosis

Dual displays and ‘focus’ feature

High compatibility and interoperability

[Title name=’Description’]The VC120-12X is Yealink’s latest innovative 1080P full-HD video conferencing endpoint for medium-sized meeting room. It is designed to provide ease-of-use, high-quality and cost-efficiency. To make life easier still, the VC120-12X supports an Intelligent Firewall Traversal which allows users to plug and play with no further firewall configuration from box to work in just five-minutes. In addition, VC120-12X also supports bandwidth dynamic adaptive adjustment, and an 8% resistance packet loss. In the latest version, users can enjoy 8-party 720P calls (asymmetric) with multipoint license, plus linkages to mobile phones or PCs for a more convenient conference call experience.It is definitely the best choice for business video conferencing.
[/Title][Title name=’Features’]

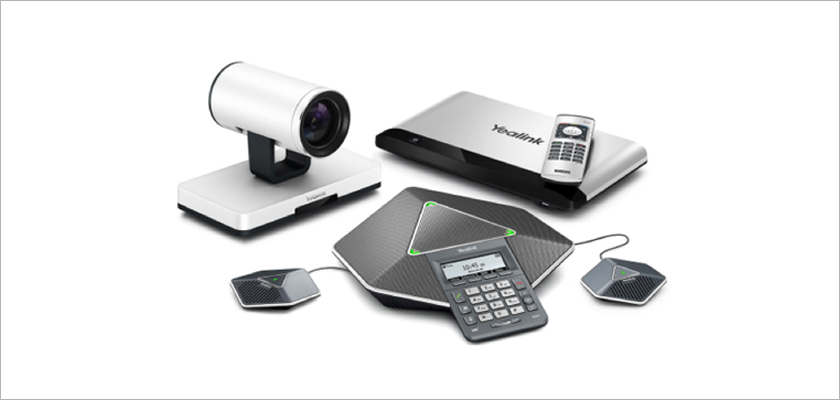

Package includes

– Yealink VC120 codec
– Yealink VCS Phone
– Yealink Full-HD PTZ Camera
– Yealink Remote Control

Full-HD PTZ Camera

• Yealink VCC20
– 12x optical zoom PTZ camera
– Horizontal field of view: 70°
– 1920 x 1080 video resolution
• Yealink VCC18
– 18x optical zoom PTZ camera
– 1920 x 1080 video resolution

Video Standard and Network Suitability

– H.264 High Profile, H.264, H.263
– Bandwidth dynamic adaptive adjustment
– Forward Error Correction (FEC), anti 8% video
and 20% audio packet loss
– Shared content and audio preference strategy
– Bandwidth Auto adaptive/Protocol Auto
adaptive/Audio/Video call Auto adaptive

Audio Input

– 1 x Yealink VCS Phone VCP41
– 1 x Yealink VCS Phone VCP40 (optional)
– 1 x Yealink Array Microphone VCM30 (optional)
– VCS Phone with 2 CPE80 Expansion Microphones
– 1 x Line-in (3.5mm)

Audio Output

– 1 x Yealink VCS Phone VCP41
– 1 x Yealink VCS Phone VCP40 (optional)
– 1 x HDMI
– 1 x Line-out (3.5mm)

Audio Features

– Audio Codecs: G.722.1C, G.722.1, G.722, G.711 u/a
– Audio technology: AEC, VAD, CNG, PLC, AJB, AGC

Call Features

– 8-party 720P calls (asymmetric) with multipoint license
– Dual 1080P30: people+content sharing
– Layout: full-screen, equal, one big/one small • Dual displays and ‘focus’ feature
– Audio/Video recording and playback
– Screenshots in USB flash drive
– Sleep mode, DND
– Meeting password, Anti-attack
– Call statistics
– Auto answer, mute, and call waiting
– Intelligent searching
– Local directory:
500 entries + 100 meeting entries
– Call History: all/missed/received/dialed
– LDAP phonebook
– Multi-language support

Standard Communication Protocol

– H.323/SIP
– Dual stream protocol: H.239/BFCP (SIP)
– FECC: H.224/H.281
– H.225, H.241, H.245, H.235 v3
– Gatekeeper account and SIP account

Network and Security

– TCP/IP (IPv4/IPv6), DHCP/stastic IP
– HTTP/HTTPS web server
– SRTP/TLS, AES encryption
– QoS: 802.1p/Q, Diff-serv
– IEEE802.1X, LLDP-MED, VLAN
– Time and date synchronization using SNTP
– Built-in certificate

NAT and Firewall Transversal

– NAT/STUN/ICE
– Yealink intelligent firewall transversal
– OpenVPN
– H.460

Configuration and Management

– Configuration via browser/display
– Firmware upgrading, factory resetting
– Export or import configuration
– SNMP, audio/video and network diagnosis
– Package tracing and system log exporting

Codec User Interface

– 1 x 10/100/1000M Ethernet
– 2 x HDMI, 1 x DVI, 1 x VGA
– 1 x Yealink Audio port (RJ-45)
– 1 x Line-in (3.5mm)
– 1 x Line-out (3.5mm)
– 1 x power port
– 2 x USB2.0 port
– 1 x power key
– 1 x security lock slot
– 1 x reset slot

Other Physical Features

– External universal AC adapter:
AC 100~240V input and DC 19V/3.42A Output
– Power consumption (PSU): Idle<2.8W, normal operating: 24W; MAX: 30W
– Dimension (W.D.H):
Codec: 330mm x 183mm x 40mm;
Phone: 320mm x 260mm x 52mm; Camera: 282mm x 152mm x 159mm; Remote control: 190mm x 55mm x 24mm
– Operating humidity: 10~95%
– Storage temperature: -10~50°C

Package Features

– N.W/CTN: 7.2kg
– G.W/CTN: 8.4kg
– Carton Meas: 418mm*350mm*420mm

[/Title]
