Built-in 24-site multipoint and can be divided into two virtual meeting rooms

 1080P/60FPS and 12x optical PTZ camera

 H.265/HEVC video codec, 1080P from 512Kbps bandwidth

 Super video packet loss recovery technology, resistant up to 30%

 5-inch touchable conference phone with harman kardon speaker

 Two DECT-based wireless expansion microphones

 Two HDMI output and two HD content input (HDMI + Mini-DP)

 Deeply integrate with leading cloud platforms: Yealink Cloud, Yealink Meeting Server, StarLeaf, Pexip, Mind, Zoom and BlueJeans

[Title name=’Description’]

[/Title][Title name=’Features’]
Package includes

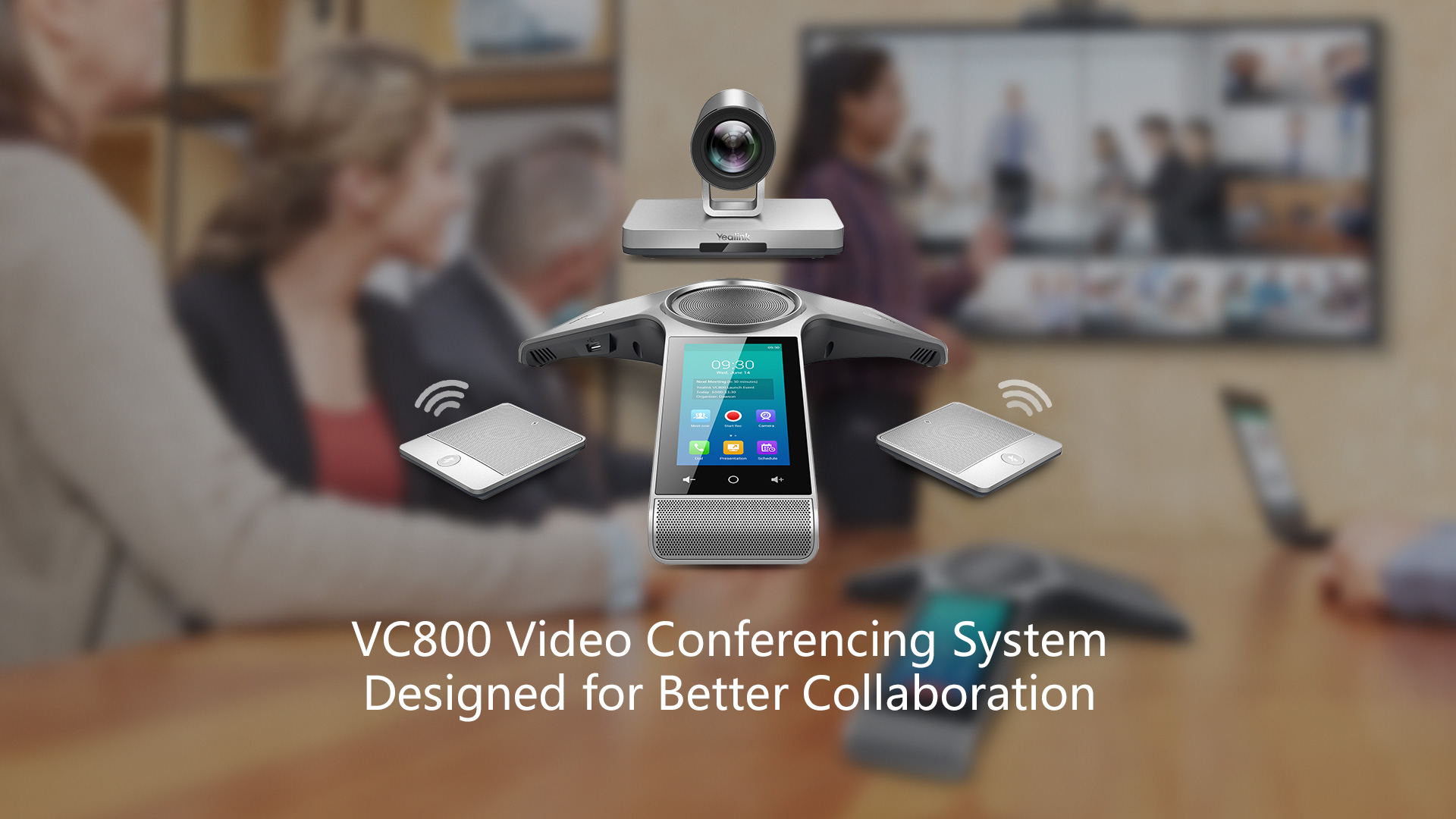

• VC800 Codec(integrate camera)
• Video Conference Phone CP960
• CP Wireless Expansion Mic CPW90 (2 units) or CP Wired Expansion Mic CPE90 (2 units)
• Remote Control VCR11
• Cable Hub VCH50
• Cable Bundle

Full-HD PTZ Camera

• 1920 x 1080 video resolution
• 60 frame rate
• 12x optical zoom PTZ camera
• Horizontal field of view: 70°
• Vertical field of view: 42°
• Pan angel range: +/- 100°
• Tilt angel range: +/- 30°
• Beauty shot

Multipoint Capacity

• Built-in multipoint up to 24 sites at 1080p30
• Multipoint license for 8/16/24 sites
• Supports two virtual meeting rooms
• Additional one-way audio call
• Mixed protocols, codecs, bandwidth, resolution, and frame rate

Video Standard and Network Suitability

• Video codecs: H.265/HEVC, H.264 High Profile, H.264, H.263
• Bandwidth dynamic adaptive adjustment
• Forward Error Correction (FEC), anti 30% video and audio packet loss
• Shared content and audio preference strategy
• Bandwidth/protocol/ auto adaptive

VCS Phone CP960 and Audio Features

• 5-inch touchscreen with 1280*720 resolution
• Harman kardon speaker
• Built-in 3-microphone array
• 20ft/360° voice pickup range
• Supports 2 wireless (or wired) expansion mic
• Audio codecs:
– Opus, 8~48kHz sampling rate
– 14kHz bandwidth with G.722.1C
– 7kHz bandwidth with G.722.1
– 3.4kHz bandwidth with G.711 (PCMA/PCMU)
• Audio technology:
– Acoustic echo cancellation
– Automatic gain control
– Yealink Noise Proof Technology
– CNG, PLC, AJB, De-Rerb

Call Features

• 1080p60 people + 1080P30 content sharing video quality
• Video Layout:
– Voice activation (onePlusN)
– onePlusN, maximum 1+7 viewable participates
– N*N, maximum 3*3 viewable participates
– Picture-in-picture (PIP) , full-screen
• Video/audio recording and playback
• Dual displays and ‘focus’ feature
• Screenshots in USB flash drive
• Group dial
• Meeting control:
– invite/remove
– mute/unmute participates (only for Yealink Meeting Server)
– lock
• DND (do not disturb), call statistics
• Auto answer, mute, and call waiting
• Virtual meeting room password
• Virtual keyboard
• Local directory: 500 entries
• Call history: all/missed/received/dialed
• LDAP phonebook
• Multi-language support

Standard Communication Protocol

• H.323/SIP
• Dual stream protocol: H.239 (H.323)/BFCP (SIP)
• FECC: H.224/H.281, Sony VISCA and PELCO D/P
• H.323 protocol suite: H.245, H.225, H.235, H.241
• Gatekeeper account and SIP account

Compatible Cloud Platforms

• Yealink Cloud Management Service
• Yealink Meeting Server
• StarLeaf/UC OpenCloud, supports QCP code
• Pexip/Mind/Zoom/BlueJeans

Network and Security Features

• IPv4 and IPv6, DHCP/static IP
• HTTP/HTTPS web server
• RS232/HTTP API for control system integration
• SRTP/TLS, AES 128-bit encryption
• QoS: 802.1p/q, Diff-serv
• VLAN, IEEE802.1X, LLDP-MED
• Anti-attack
• Network diagnosis: Ping, trace route
• Time and date synchronization using SNTP
• Built-it certificate

NAT and Firewall Traversal

• NAT (manual/auto mode)
• ICE/TURN/STUN
• Yealink intelligent firewall traversal
• Open VPN, H.460

Configuration Management

• Configuration via browser/display/auto-provisioning
• Virtual remote control
• Firmware upgrading, factory resetting
• Export or import configuration
• System log exporting

VC800 Codec Connections

• 2 x HDMI output
• 1 x Line-in (3.5mm)
• 1 x Line-out (3.5mm)

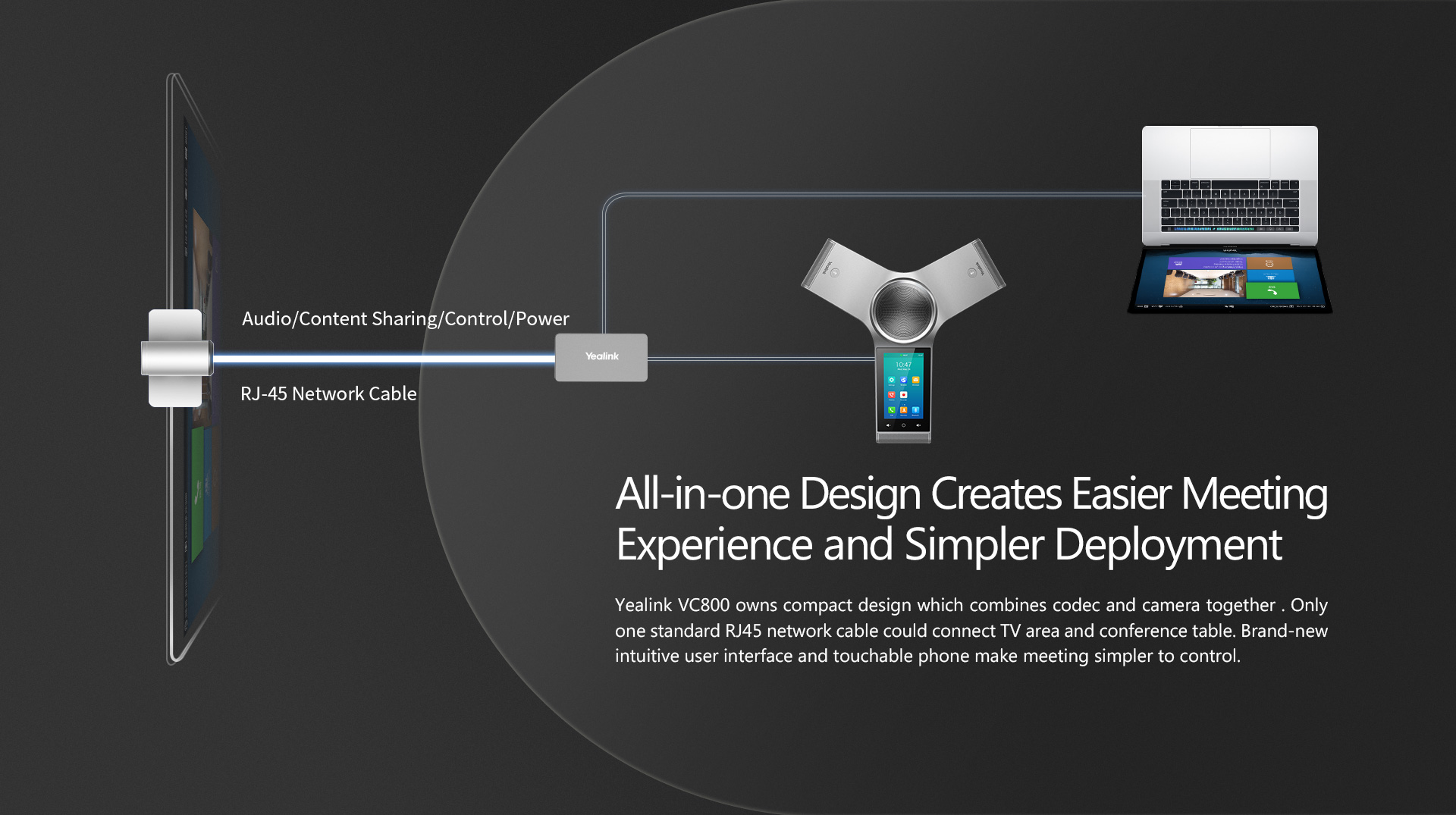

• 1 x Yealink extension port (RJ-45) connect to VCH50 /CP960 Phone
• 1 x 10/100/1000M Ethernet port
• 2 x USB 2.0
• 1 x Power port
• 1 x Security lock slot
• 1 x Reset slot

VCH50 Connections

• 1 x RJ45 port connect to VC800 codec
• 1 x RJ45 port connect to CP960
• 1 x HDMI input for content sharing (with audio)
• 1 x Mini-DP input for content sharing (with audio)
• 1x USB 2.0 for recording

Other Physical Features

• External Yealink Power Adapter: AC 100~240V input and DC 48V/0.7A Output
• Wall/TV mounted shelf with screws
• Power consumption (PSU): Idle<16W, normal operating: 17W; MAX: 21W
• Dimension (W.D.H):
– VC800 codec: 235 mm x 172 mm x 169 mm
– CP960: 338mm x 338mm x 74mm
– VCR11: 190mm x 55mm x 24mm
• Operating humidity: 10~95%
• Operating temperature: 0~40°C
• Storage temperature: -30~70°C

Package Features

• N.W/CTN: 6.6 kg
• G.W/CTN: 7.8 kg
• Giftbox size: 405mm x 392mm x 141mm
